PRODUCTS螺纹规

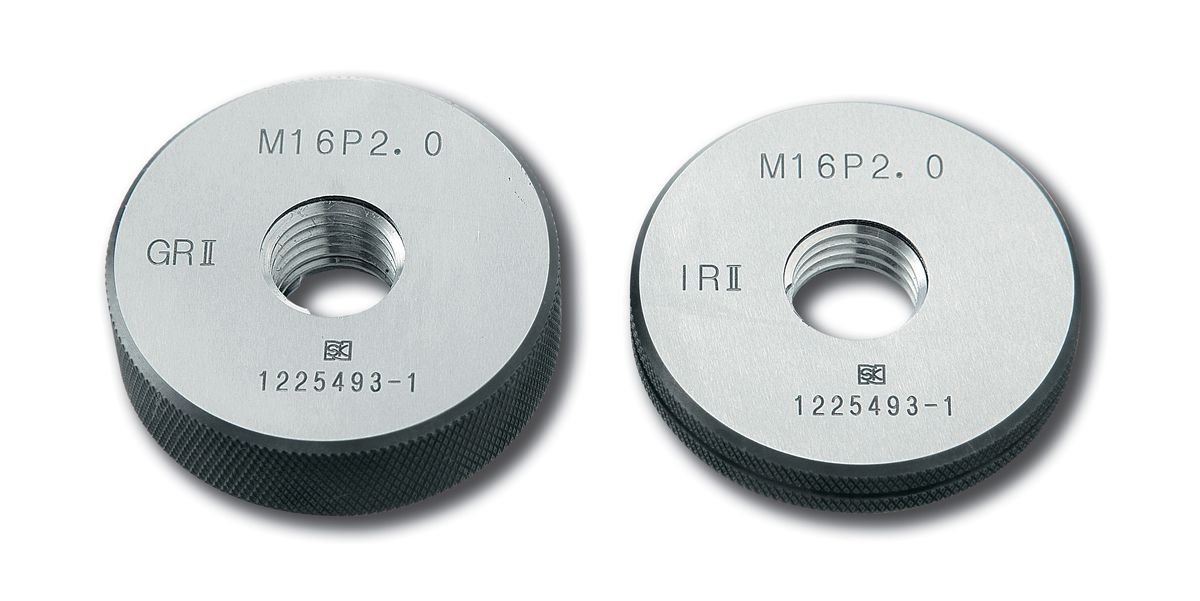

界限螺纹环规 GRIRⅡ
※此表可左右拖动滚动查看。

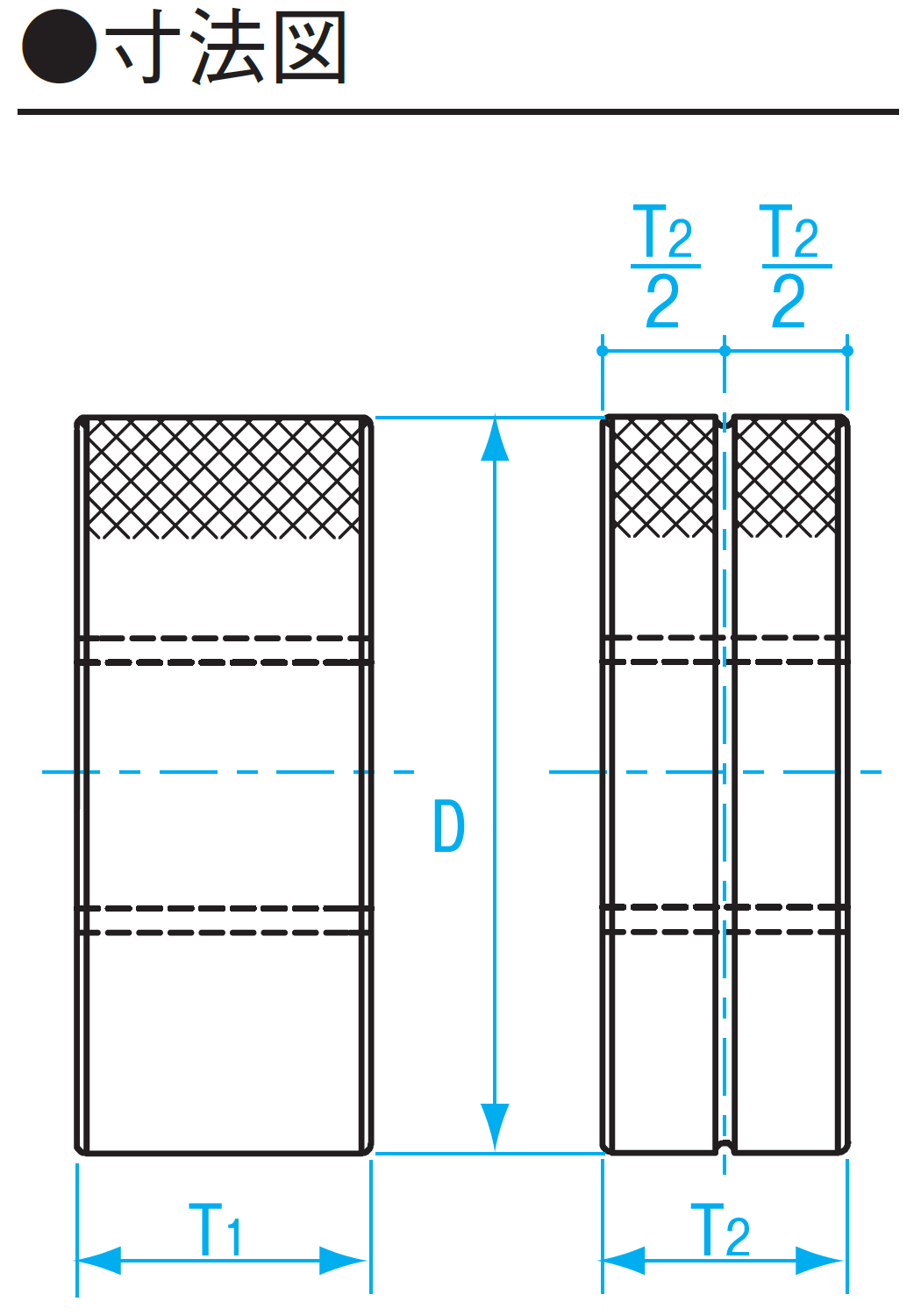

| 商品代码 | 品号 | 表示规格 | 外径D (mm) | T1 (mm) | T2 (mm) | 本体重量 | 本体宽度 | 本体高度 | 本体进深 |
|---|---|---|---|---|---|---|---|---|---|
| 00380204 | GRIR2-0204 | M2xP0.4 | 25 | 3 | 3 | - | - | - | - |
| 00380207 | GRIR2-026045 | M2.6xP0.45 | 25 | 3 | 3 | - | - | - | - |
| 00380305 | GRIR2-0305 | M3xP0.5 | 25 | 4 | 3 | - | - | - | - |
| 00380407 | GRIR2-0407 | M4xP0.7 | 25 | 6 | 4 | - | - | - | - |
| 00380508 | GRIR2-0508 | M5xP0.8 | 25 | 6 | 4 | - | - | - | - |
| 00380610 | GRIR2-0610 | M6xP1.0 | 30 | 8 | 6 | - | - | - | - |
| 00380710 | GRIR2-0710 | M7xP1.0 | 30 | 8 | 6 | - | - | - | - |
| 00380810 | GRIR2-0810 | M8xP1.0 | 30 | 8 | 6 | - | - | - | - |
| 00380812 | GRIR2-08125 | M8xP1.25 | 30 | 8 | 6 | - | - | - | - |
| 00381010 | GRIR2-1010 | M10xP1.0 | 40 | 8 | 6 | - | - | - | - |
| 00381012 | GRIR2-10125 | M10xP1.25 | 40 | 8 | 6 | - | - | - | - |
| 00381015 | GRIR2-1015 | M10xP1.5 | 40 | 10 | 8 | - | - | - | - |
| 00381210 | GRIR2-1210 | M12xP1.0 | 40 | 10 | 8 | - | - | - | - |
| 00381212 | GRIR2-12125 | M12xP1.25 | 40 | 10 | 8 | - | - | - | - |
| 00381215 | GRIR2-1215 | M12xP1.5 | 40 | 10 | 8 | - | - | - | - |
| 00381217 | GRIR2-12175 | M12xP1.75 | 40 | 15 | 10 | - | - | - | - |
| 00381420 | GRIR2-1420 | M14xP2.0 | 50 | 15 | 10 | - | - | - | - |
| 00381620 | GRIR2-1620 | M16xP2.0 | 50 | 15 | 10 | - | - | - | - |
| 00381825 | GRIR2-1825 | M18xP2.5 | 50 | 22 | 15 | - | - | - | - |
| 00382025 | GRIR2-2025 | M20xP2.5 | 50 | 22 | 15 | - | - | - | - |
※此表可左右拖动滚动查看。
